Diabetes mellitus is a metabolic disorder that causes disturbances of carbohydrate, fat and protein metabolism, leading to several complications such as nephropathy, neuropathy, and retinopathy. Current statistics suggest that about 382 million people are living with diabetes worldwide and this number is projected to increase to 552 million by 2035. In Africa, 19.8 million people are diagnosed with the disease while another 12.4 million are undiagnosed.1 (IDF 2014). The search for the discovery of anti-diabetic drugs from medicinal plants is an important strategy required to combat the widespread nature of diabetes mellitus in the world. This is because present synthetic drugs have many disadvantages ranging from limited efficacy and several side effects such as weight gain and chronic tissue damage.2 (Kane et al. 2005). However, current therapeutic strategy for the control of postprandial hyperglycemia is the inhibition of two key members of exo-acting glycoside hydrolases (α-glucosidase and α-amylase), resulting in a protracted delay of carbohydrate digestion to absorbable monosaccharides (Kawamura-Konishi et al. 2012). Therefore, α-glucosidase and α-amylase inhibitors will ultimately reduce the flow of glucose from complex dietary carbohydrates into the bloodstream, diminishing the postprandial hyperglycemia. Therefore, the search for alternative agents with potent antioxidative properties that could also decrease postprandial hyperglycemia, thereby providing a holistic avenue to control hyperglycemia and other diabetic complications resulting from oxidative stress is of utmost importance. One of such plants used in the management of this disease in Africa is Blighia sapida K.D. Koenig.
Blighia sapida K.D. Koenig, also known as ‘Akee apple’, belongs to the plant family called Sapindaceae. There are different species of this plant, which include B. sapida, B. welwitschii and B. unijugata (Keay 1999). B. sapida is a familiar tree often planted to provide shade from hot sun. It is known locally as ‘Isin’ in Yoruba, ‘Gwanja kusa’ in Hausa and ‘Okpu’ in Igbo (Keay 1999). B. sapida is about 25m high and 2.5m in girth, with a heavy evergreen crown. B. sapida is a native of West Africa. It extends from Senegal to Gabon. It is also cultivated in India and tropical America. B. sapida is well distributed throughout Nigeria and found in the drier forest of the savannah region (Esuoso and Odetokun 2005). B. sapida is a medicinal plant commonly used by traditional healers in Nigeria, and highly valued in Africa for the treatment of various ailments (Owonubi 1996). The fruit has an inhibitory effect against α-glucosidase and α-amylase as reported by (Kazeem et al. 2014). B. sapida root extract has been shown to have hypoglycemic effect in normoglycemic rats (Saidu et al. 2012). B. sapida bark extract have been shown to ameliorate pancreatic β-cell dysfunction (Ojo et al., 2017). However, an attempt at understanding the pharmacological features of these plants with their different chemical compound that may hitherto poses hypoglycemic potentials necessitated this study. Thus, we conducted a comprehensive and systematic investigation of the in-vitro antioxidant as well as α-glucosidase and α-amylase inhibitory activities of extracts of B. sapida K.D. Koenig using complementary in vitro models, along with identification of bioactive compounds as well as establishing the mechanisms of α-glucosidase and α-amylase inhibitions via the enzyme kinetics approach.
MATERIALS AND METHODS
Chemicals and reagents
α-Glucosidase from Saccharomyces cerevisiae, porcine pancreatic amylase, p-nitrophenyl-a-D-glucopyranoside (pNPG), p-nitrophenol, gallic acid, and potassium ferricyanide were obtained from Sigma-Aldrich, Germany. Starch, dinitrosalicylic acid (DNS), maltose, ethanol, trichloroacetic acid, 1,10-phenanthroline, gallic acid, FeSO4, potassium ferricyanide, ferric chloride, dimethylsulfoxide (DMSO), 1,1-diphenyl-2-picrylhydrazil (DPPH), thiobarbituric acid and Folin Ciocalteau reagents were obtained from Merck Chemical Company, Germany.
Fresh stem bark peelings of Blighia sapida K.D. Koenig were collected at a local farm Abeokuta, Ogun State. Identification and authentication was previously done by (Ojo et al., 2017).
Preparation of Extract
Fresh stem bark was air-dried in the laboratory at ambient temperature (30 ± 2°C), pulverized using a laboratory mechanical grinder and the ground powders obtained stored until further use. The powdered sample (100 g) was extracted with a solvent of 70 % ethanol in water for 48 h. The filtrate was concentrated and evaporated to dryness at 60°C, using rotary evaporator. The yield was as shown below and the dry extract was stored at 4°C until further analysis.
Determination of total phenol content
The total phenol content of the bark extract was determined (as gallic acid equivalent) as described by McDonald et al. (2001) with slight modifications. Briefly, 200 µ L of the extract dissolved in 10 % DMSO (240 µ g mL-1) was incubated with 1.0 mL of Folin Ciocalteau reagent (diluted 10 times) and 800 µ L of 0.7 mol L-1Na2CO3 for 30 min at room temperature. Then, the absorbance was measured at 765 nm on a Shimadzu UV mini 1240 spectrophotometer (Shimadzu, Japan). All measurements were done in triplicates. Results were expressed as mg GAE/ 100 g dry ethanol extracts.
Determination of Reducing Power
The reducing power of the bark extract was determined by reduction a FeCl3 solution as described by Pulido et al. (2000). A 2.5 mL aliquot of the extract was mixed with 2.5 mL, 200 mM sodium phosphate buffer (pH 6.6) and 2.5 mL, 1% potassium ferricyanide. The solution was incubated at 50°C for 20 min and then 2.5 mL, 10% TCA was added. The sample was then centrifuged at 650 g for 10 min and 5 mL of the supernatant was mixed with an equal volume of water and 1.0 mL, 0.1% ferric chloride. The same treatments were performed to a standard ascorbic acid solution and the absorbance read at 700 nm. The reducing power was then calculated and expressed as percentage inhibition.
Determination of Iron Chelation Ability
The Fe2+chelating ability of bark extract was determined by employing a modified method of (Minotti and Aust 1987) with a slight modification by Puntel et al. (2005). Freshly prepared 500 µ mol L-1 FeSO4 (150 µ L) was added to a solution containing 168 µ L of 0.1 mol L-1 Tris-HCl (pH 7.4), together with 218 µ L saline and an ethanol extract (1-5 mg/mL). The solution was incubated for 5 min, followed by addition of 13 µ L of 0.25% 1, 10-phenanthroline (w/v). Absorbance was read at 510 nm. Fe chelating ability was expressed as percentage inhibition.
DPPH radical scavenging activity
The free radical scavenging activity of the extract was determined using a slightly modified method described by Tuba and Gulcin (2008). A 0.3 mmol L-1solution of DPPH was prepared in methanol and 500 µ L of this solution was added to 1 mL of the extract (dissolved in 10 % DMSO) at different concentrations (1 – 5 mg/mL). These solutions were mixed and incubated in the dark for 30 min at room temperature. Absorbance was read at 517 nm against blank lacking scavenger.
Determination of α-amylase inhibitory activity
The α-amylase inhibitory activity was determined as described by Shai et al. (2010). A volume of 250 μL of ethanol extract at different concentrations (1 – 5 mg mL-1) was incubated with 500 μL of porcine pancreatic amylase (2 U mL-1) in 100 mmol L-1 phosphate buffer (pH 6.8) at 37°C for 20 min. 250 μL of 1 % starch dissolved in 100 mmol L-1 phosphate buffer (pH 6.8) was added to the solution and incubated at 37°C for 1 h. 1.0 mL of DNS color reagent was then added and boiled for 10 min. Absorbance was read at 540 nm and the inhibitory activity was expressed as a percentage of a control sample without inhibitors. All assays were carried out in triplicate.
Mode of α-amylase inhibition
The mode of inhibition of α-amylase by the bark extract was determined by employing a modified method described by Ali et al. (2006). Briefly, 250 μL of the (2.5 mg mL-1) extract was pre-incubated with 250 μL of α-amylase solution for 10 min at 37°C in one set of tubes. In another set of tubes, α-amylase was pre-incubated with 250 μL of phosphate buffer (pH 6.9). Two hundred and fifty μL of the starch solution at increasing concentrations (0.3-5.0 mg mL-1) was added to both sets of reaction mixtures to start the reaction. The solution was then incubated for 10 min at 37°C and boiled for 5 min after addition of 500 μL of DNS to stop the reaction. The amount of reducing sugars released was determined using a maltose standard curve and converted to reaction velocities. A double reciprocal (Lineweaver-Burk) plot (1/v versus 1/[S]) where v is reaction velocity and [S] is substrate concentration, was plotted to determine the mode of inhibition.
Determination of α-glucosidase inhibitory activity
The α-glucosidase inhibitory activity was determined as described by Ademiluyi and Oboh (2013). Briefly, 250 μL of the extract, at different concentrations (1–5 mg mL-1), was incubated with 500 μL of 1.0 U mL-1 α-glucosidase solution in 100 mmol L-1 phosphate buffer (pH 6.8) at 37°C for 15 min. Thereafter, 250 μL of a pNPG solution (5 mmolL-1) in 100 mmol L-1 phosphate buffer (pH 6.8) was added and the solution was further incubated at 37°C for 20 min more. Absorbance was read at 405 nm and the inhibitory activity was expressed as the percentage of a control sample without inhibitors.
Mode of α-glucosidase inhibition
The mode of inhibition of α-glucosidase by the stem bark extract was determined as described by Ali et al. (2006). Briefly, 50 μL of the (2.5 mg mL-1) extract was pre-incubated with 100 μL of α-glucosidase solution for 10 min at 37°C in one set of tubes. In another set of tubes, 100 μL α-glucosidase was pre-incubated with 50 μL of phosphate buffer (pH 6.9). 50 μL of pNPG at increasing concentrations (0.63-2.0 mg mL-1) was added to both sets of reaction mixtures to start the reaction. The solution was incubated for 10 min at 37°C and 500 μL of Na2CO3 was added to stop the reaction. The amount of reducing sugars released was determined using a para-nitrophenol standard curve and converted to reaction velocities. A double reciprocal (Lineweaver-Burk) plot (1/v versus 1/[S]) where v is reaction velocity and [S] is substrate concentration was plotted to determine the mode of inhibition.
Gas chromatography-mass spectrometric (GC-MS) analysis
The ethanol extract was subjected to GC-MS analysis. The analysis was carried out as described by Ibrahim et al. (2014). The carrier gas was ultra-pure helium at a flow rate of 0.7 mL min-1 and a linear velocity of 37 cm s-1. The injector temperature was set at 250°C. The initial oven temperature was 60°C, which was programmed to 280°C at the rate of 10°C min-1 with a hold time of 3 min. Injections of 2 μL were made in the split less mode with a manual split ratio of 20:1. The mass spectrometer was operated in the electron ionization mode at 70 eV and electron multiplier voltage at 1859 V. Other MS operating parameters were as follows: ion source temperature 230°C, quadrupole temperature 150°C, solvent delay 4 min and scan range 50-700 amu. Compounds were identified by direct comparison of the retention times and mass fragmentation pattern with those from the National Institute of Standards and Technology (NIST) library.
Results of the three replicates were pooled and expressed as the mean ± SD. Differences between groups were assessed by an analysis of variance model and Tukey’s test. The level of significance for the analyses was set at p < 0.05. These analyses were performed by using the free software R version 3.1.1. (R Core Team, 2014).
RESULTS AND DISCUSSION
Total Phenol Content
The ethanol extract of Blighia sapida bark had 19.1% as its yield (Table 1). The total phenolic content of ethanol extract of Blighia sapida bark increases as the concentration (1-5 mg/ml) of extract increases. At 5 mg/ml, the extract of Blighia sapida had high phenol content of 19.92 ± 0.12 mg GAE/100g Table 2. However, ethanolic extract have high yields and contain a high total phenol content as the concentration increases. This is consistent with previous findings that ethanol is the best solvent for the extraction of a maximum yield of polyphenols compared to other solvents (Mohd-Esa et al. 2010; Ojo et al. 2014). Although no correlation analysis was carried out in this study, previous studies strongly correlate antioxidative effect to total polyphenol contents (Hossain et al. 2009).
|Concentration (mg/ml)||(mg GAE/100g)|
|1||7.45 ± 0.09|
|2||9.80 ± 0.13|
|3||12.75 ± 0.11|
|4||14.85 ± 0.01|
|5||19.92 ± 0.12|
Ethanol extracts of Blighia sapida bark showed significantly (P < 0.05) higher reducing power Figure 1. The trend of the reducing capacity of the extracts was concentration dependent (1-5 mg/ml). Reducing power is an antioxidant defense system and the two mechanisms known to affect this property are electron transfer and hydrogen atom transfer (Dastmalchi et al. 2007; Ojo et al. 2014). The reducing capacity of the extracts could also indicate potential antioxidant activities (Oboh and Rocha 2007).
DPPH radical scavenging ability
The scavenging effect of extracts in the range 1 – 5 mg mL-1 on the DPPH radical increased with an increasing concentration of B. sapida extracts Figure 2. IC50 value for DPPH scavenging by the ethanol extracts of B. sapida was 2.53 mg mL-1. In the present investigation, B. sapida at different concentration demonstrated significant DPPH scavenging activity indicating its ability to act as radical scavengers. This study revealed that ethanol extracts of B. sapida stem bark scavenged DPPH free radicals. Thus, the observed DPPH radical scavenging ability might be attributed to the abundant phenols in the extracts. This is consistent with previous studies (Gyamfi and Yonamine 1999; Shim et al. 2003).
Iron chelating ability
Blighia sapida ethanol bark extract had a high chelating effect. IC50 values for the chelating effect of ethanol extracts of B. sapida bark was 3.29 mg/mL. The trends of the chelating activity increased with increasing extract concentration of B. sapida bark (Figure 3). Furthermore, chelating iron could help prevent the generation of hydroxyl radicals. Iron serves as a metal catalyst in producing hydroxyl radicals from hydrogen peroxide (Oboh et al. 2008; Ojo et al. 2013a). The bark extract significantly chelates Fe2+ in a concentration dependent manner (1–5 mg/mL). By chelating Fe2+, the generation of hydroxyl radicals in the Fenton reaction can be attenuated and thus prevent possible damage of hydroxyl radicals to biomolecules. Accumulation of iron has been reported to lead to an increase in free radicals and development of oxidative stress (Shim et al. 2003).
α-amylase inhibitory activity

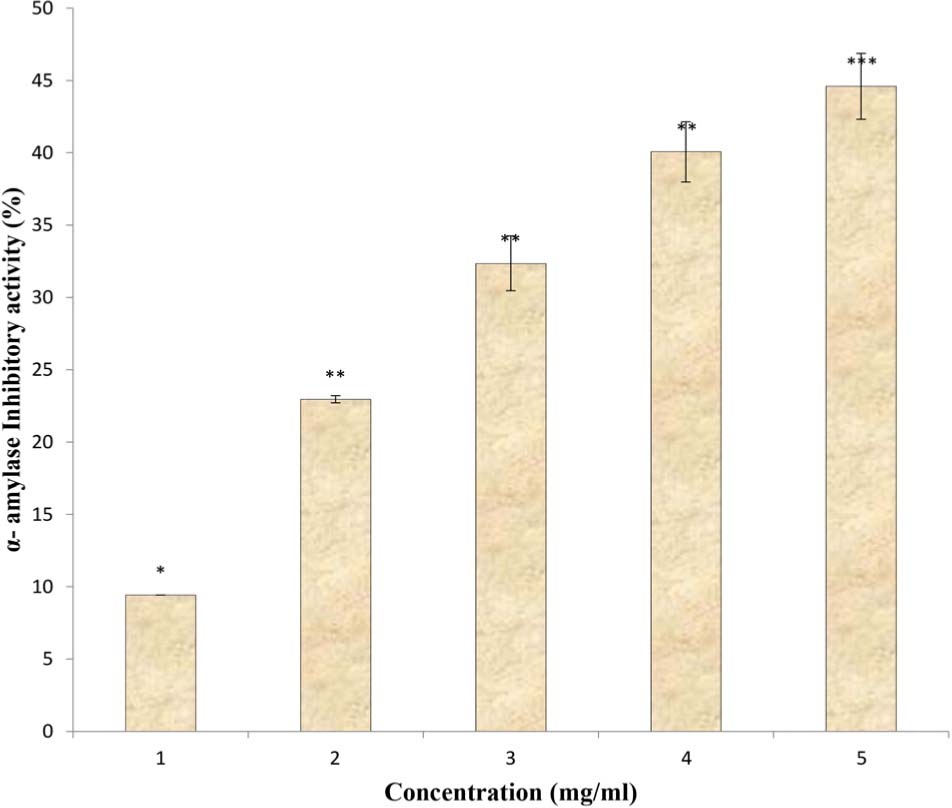

Figure 4 shows the percentage inhibition of α-amylase ethanol extract of B. sapida bark. The fraction had appreciable in vitro inhibitory activity against α-amylase. The IC50 value for the ethanol extract against α-amylase activity was determined from a dose-response curve to be 0.053 ± 0.25 mg/mL (Table 3). The Lineweaver-Burke plot was generated to determine the mode of inhibition of the enzyme and the result showed that ethanol extract of B. sapida inhibited α- amylase in a competitive manner (Figure 6). It is an established fact that α-amylase and α-glucosidase inhibitors from natural sources play a significant role in diabetic management. This is achieved via a decrease in postprandial hyperglycemia through inhibition of α-amylase and α-glucosidase actions (Adefegha and Oboh 2012). Furthermore, for effective control of postprandial hyperglycemia, moderate α-amylase inhibition and potent α-glucosidase inhibition provide better options for controlling the availability of dietary glucose for absorption in the intestinal tract (Kajaria et al. 2013). This is due to adverse effects associated with strong α-amylase inhibition such as abdominal distension, flatulence, and diarrhea (Al-Zuhair et al. 2010). In this study, B. sapida ethanol extract demonstrated α-amylase inhibition and α-glucosidase inhibition, indicating a potential role as an anti-diabetic agent. The competitive inhibition of α-amylase by the extract of B. Sapida bark suggests that the active inhibitory component(s) of the extract are structurally similar to the normal substrate of the enzyme. Therefore, it binds reversibly to the active site of the enzyme and occupies it in a mutually exclusive manner with the substrate (Shai et al. 2010). These high α-amylase inhibitory activity, might suggest the presence of more active compounds that could inhibit the breakdown of complex carbohydrates to oligosaccharides, thereby diminishing the effect of carbohydrate consumption on postprandial hyperglycemia. This is because some of the side effects associated with the currently available drugs for the management of T2D are linked with excessive inhibition of α-amylase activity (Ademiluyi and Oboh 2013).
α- glucosidase inhibitory activity

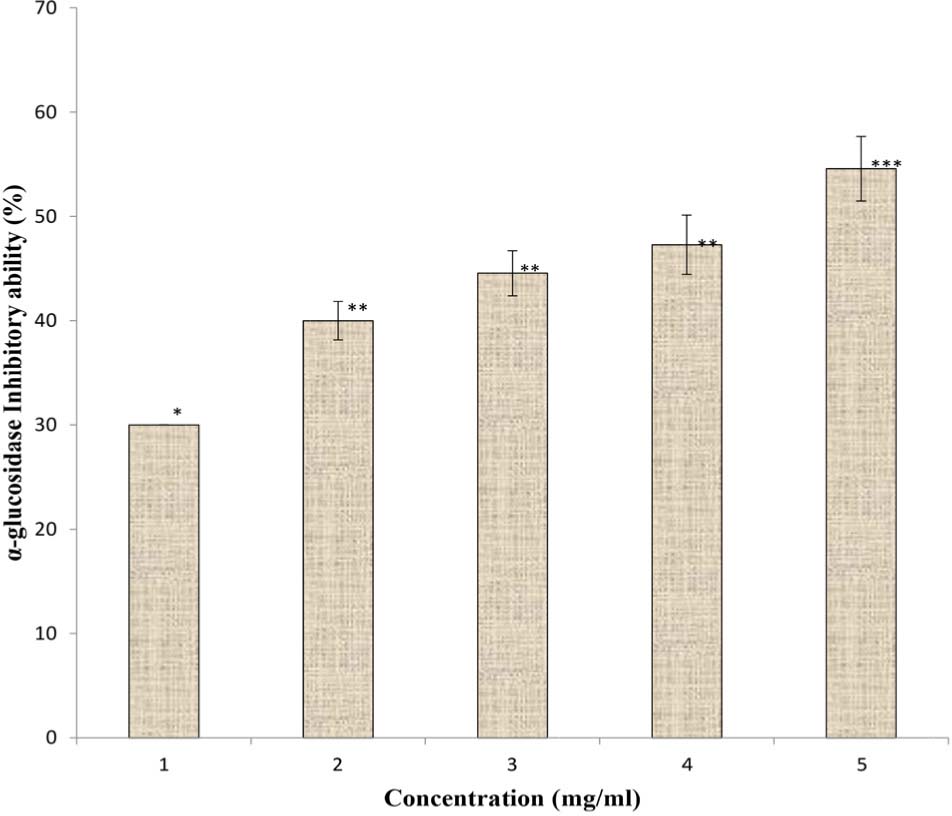

Figure 5 shows the percentage inhibition of α-glucosidase by ethanol extract of B. sapida bark. The fraction inhibited α-glucosidase activities in vitro in a dose dependent manner. The concentration of the extract required to cause 50% inhibition (IC50) was 0.0417 ± 0.24 mg/ml (Table 3). Figure 5 depicts that the mode of inhibition of α- glucosidase by the ethanol extract of B. sapida is an un-competitive type of inhibition (Figure 7). For α-glucosidase inhibition, the strong inhibition of the enzyme displayed by the bark extract as shown by the IC50 values suggests that this extract is a potent α-glucosidase inhibitor. Further study to ascertain the mode of inhibition α-glucosidase by the extract of B. sapida bark showed the extracts inhibited the enzyme competitively. This suggests that the inhibitor binds exclusively to the enzyme substrate complex yielding an inactive enzyme-substrate-inhibitor complex (Bachhawat et al. 2011; Kazeem et al. 2013). Thus, the strong inhibition of α-glucosidase by the extract would slow down the breakdown of disaccharides to liberate glucose, thereby reducing glucose absorption from the small intestine (Kwon et al. 2007). Furthermore, in spite of abundant reports on the α-glucosidase inhibitory activities of extracts and pure compounds from plants from stem bark, only a few authors (Kang et al. 2012) to the best of our knowledge reported such a low IC50 value as found with the ethanol extract in our study. This observation might be connected to the phenol content in this extract, because polyphenolic fractions from plants have been shown to inhibit α-glucosidase activity, allowing for tighter control of blood glucose (Kamiyama et al. 2010). The inhibitory effects of the extract of the B. sapida stem bark on the α-amylase and α-glucosidase activities may be attributed to the presence of phytochemicals such as polyphenols, tannins and saponins. However, previous studies attributed the medicinal property of the aqueous extract of this plant to the presence of saponins (Abolaji et al. 2007; Aderinola et al. 2007). Moreover, a water soluble pure compound named hypoglycin was isolated from this plant which also contributes to the plant hypoglycemic properties (Hassall and Reyle 1955). This could also give the reason behind the inhibitory activity shown by the ethanol extract of B. sapida bark towards these enzymes.
|Ethanol||0.0417 ± 0.24a||0.0530 ± 0.25b|
The GC-MS chromatogram of the fraction is presented in Figure 8. Twenty peaks were visible in the chromatogram and the various chemical constituents at those peaks were identified from the NIST library Table 4 and the compounds detected correspond to aromatic phenols, aromatics containing ether, ester and acid moieties and long chain aliphatic acids. The retention time and molecular mass of the detected compounds are provided in Table 4. 2-Methoxy-4-vinyl phenol, 1-eicosanol, (-)-mellein, diethyl phthalate, 4-((1E)-3-hydroxy-1-propenyl)-2-methoxy phenol, phenol, 3-isopropoxy-5-methyl-, phthalic acid, heptyl 4-nitrophenyl ester, 9,9-dimethoxy bicyclo [3.3.1] nona-2,4-dione, di-dodecyl phthalate, 9,9-di-methoxybicyclo [3.3.1]nona-2,4-dione, phytol, 9,12-cctadecadienoic acid (Z,Z)-, 1,2-9,9-dimethoxybicyclo[3.3.1]nona-2,4-dione, 9-octadecenamide, (Z)-, 9-octadecenamide (Z)-, citronellol epoxide (R or S), 9,19-cyclolanostan-3-ol, acetate, (3.beta.)-, cholest-4-en-3-one, 9,9-dimethoxybicyclo [3.3.1]nona-2,4-dione, cis-1,2-cyclododecanediol, were present in the ethanol extracts of B. sapida. The most abundant phytochemicals (> 50%) in the extract as identified by the library were phenolic (2-methoxy-4-vinyl phenol) and phthalic acid (1, 2-benzenedicarboxylic acid) (Figure 9). The possible bioactive compounds in the ethanol extract of B. sapida bark were detected using GC-MS analysis. Although, identification of pure compounds has not been recorded. Hence, the anti-diabetic action of the ethanol extract of B. Sapida bark in our study could possibly be attributed to the presence of these compounds as well, while not discounting the possible contributions of the other detected phytochemicals. Phytochemical analysis of the bark resulted in the identification of compounds with potential medicinal usage (Singh et al. 2012). For example, 2-Methoxy-4-vinylphenol, has already been implicated in a wide array of therapeutic applications such as antioxidant, anti-microbial and anti-inflammatory. Phytols are said to be cancer preventive. Other antioxidants present were phenol, 3-isopropoxy-5-methyl-, 4-((1E)-3-hydroxy-1-propenyl)-2-methoxyphenol. Hypo-cholesterolemic compounds such as 9, 12-octadecadienoic acid Z, Z) - were also present. The presence of various bioactive compounds in the B. Sapida justifies the use of the plant for various ailments by traditional practitioners. However, isolation of individual phytochemical constituents and subjecting it to the biological activity assays will definitely give useful results.
Furthermore, the phenolic hydroxyl group present in compounds 2-methoxy-4-vinylphenol and 4-hydroxy-3, 5, 6-trimethyl-4-(3-oxo-1-butenyl) could directly or indirectly be the key feature that contributed to the higher antioxidative and antidiabetic effects depicted by the stem extracts. The low reduction potentials of phenolics, hydroxyls and other related compounds inactivate and terminate the initiation and propagation of chain reactions associated with oxidative damage (Nagababu et al. 2010). In a similar way, phenolics and hydroxyls were reported to interfere with some surface amino acid side chains in both α-amylase and α-glucosidase structures (Ludwig 2002). This causes some conformational changes in the enzyme structure, thereby decreasing their actions and causing a reduction in blood glucose levels and subsequently reduced postprandial hyperglycemia.
Based on the findings of this study, it can be concluded that ethanol stem bark extract of Blighia sapida K.D. Koenig possesses antioxidative as well as effective α-glucosidase and α-amylase inhibitory effects. Hence, it is recommended that bioassay-guided fractionation of the ethanol extracts could be done in order to fully investigate the in vivo antidiabetic and antioxidative effects of this extract, isolating the active principle and subjecting it to in vivo antidiabetic evaluation.
Blighia sapida stem extract possess strong anti-diabetic activity via
Inhibition of carbohydrate hydrolyzing enzymes such as α-amylase and α-glucosidase activity.
Possess good antioxidant activity which supports its uses in the management of hyperglycaemia and its associated complications in type-2 diabetes mellitus
This inhibitory activity may be attributed to the action of their inherent polyphenols.
GC-MS analysis reveals bioactive compounds such as phenolics
